Progressive Null-Tracking for Volumetric Rendering
Zackary Misso, Yining Karl Li, Brent Burley, Daniel Teece, and Wojciech Jarosz

SIGGRAPH '23: ACM SIGGRAPH 2023 Conference Proceedings. Article No. 31

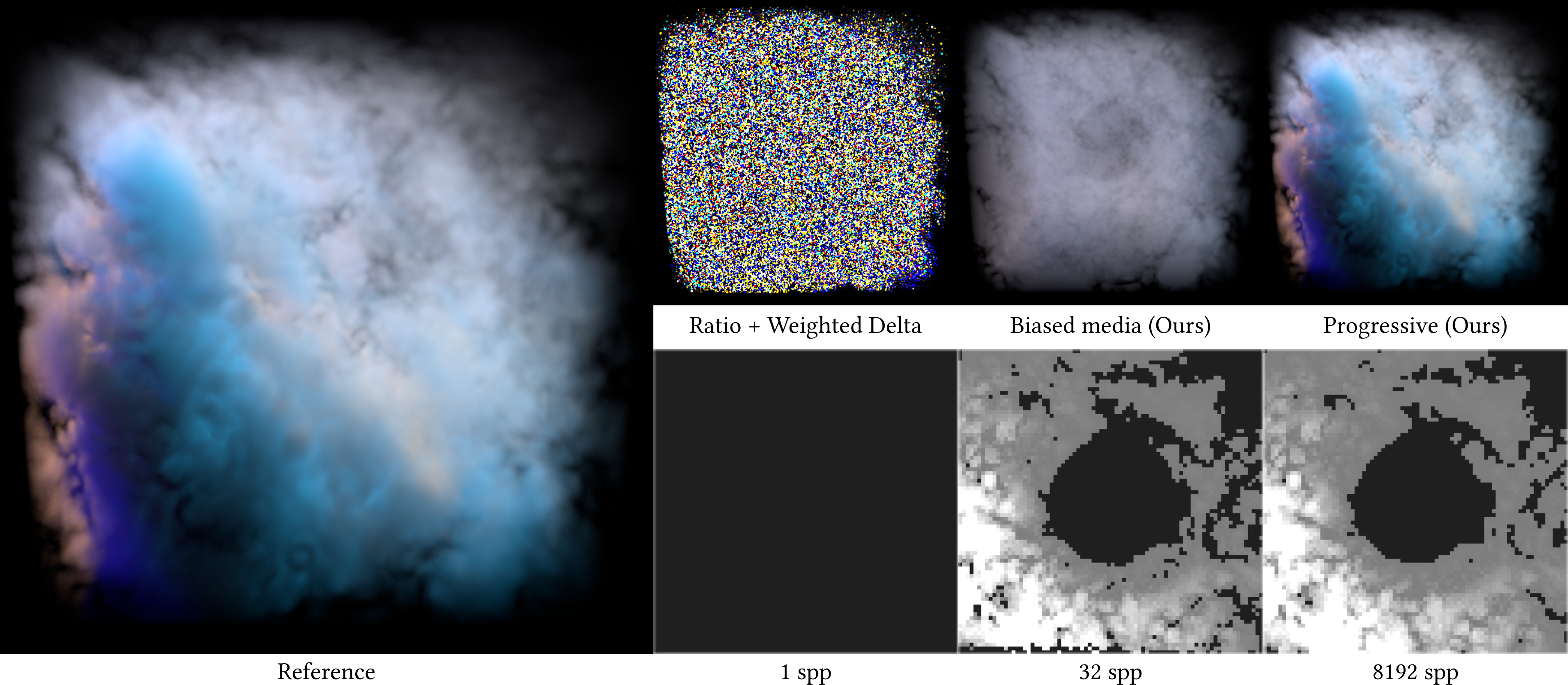

Most existing unbiased null-scattering methods for heterogeneous participating media require knowledge of a maximum density (majorant) to perform well. Unfortunately, bounding majorants are difficult to guarantee in production, and existing methods like ratio tracking and weighted delta tracking (top, left) suffer from extreme variance if the β€œmajorant” (πœ‡π‘‘ =0.01) significantly underestimates the maximum density of the medium (πœ‡π‘‘ β‰ˆ3.0). Starting with the same poor estimate for a majorant (πœ‡π‘‘ = 0.01), we propose to instead clamp the medium density to the chosen majorant. This allows fast, low-variance rendering, but of a modified (biased) medium (top, center). We then show how to progressively update the majorant estimates (bottom row) to rapidly reduce this bias and ensure that the running average (top right) across multiple pixel samples converges to the correct result in the limit.

Null-collision approaches for estimating transmittance and sampling free-flight distances are the current state-of-the-art for unbiased rendering of general heterogeneous participating media. However, null-collision approaches have a strict requirement for specifying a tightly bounding total extinction in order to remain both robust and performant; in practice this requirement restricts the use of null-collision techniques to only participating media where the density of the medium at every possible point in space is known a-priori. In production rendering, a common case is a medium in which density is defined by a black-box procedural function for which a bounding extinction cannot be determined beforehand. Typically in this case, a bounding extinction must be approximated by using an overly loose and therefore computation- ally inefficient conservative estimate. We present an analysis of how null-collision techniques degrade when a more aggressive initial guess for a bounding extinction underestimates the true maximum density and turns out to be non-bounding. We then build upon this analysis to arrive at two new techniques: first, a practical, efficient, consistent progressive algorithm that allows us to robustly adapt null-collision techniques for use with procedural media with unknown bounding extinctions, and second, a new importance sampling technique that improves ratio-tracking based on zero-variance sampling.


Text Reference

Zackary Misso, Yining Karl Li, Brent Burley, Daniel Teece, and Wojciech Jarosz. Progressive Null Tracking for Volumetric Rendering. SIGGRAPH '23: ACM SIGGRAPH 2023 Conference Proceedings. Article 31, August 2023.

Bibtex Reference

	author    = {Misso, Zackary and Li, Yining Karl and Burley, Brent and Teece, Daniel and Jarosz, Wojciech},
	title     = {Progressive Null-Tracking for Volumetric Rendering},
	booktitle = {SIGGRAPH '23: ACM SIGGRAPH 2023 Conference Proceedings},
	month     = aug,
	year      = {2023},
	articleno = {31},
	doi       = {10.1145/3588432.3591557},
	keywords  = {participating media, transmittance, null collision, null scattering, stochastic sampling,
	             Monte Carlo integration},


The cloud model in Fig. 9 is from Walt Disney Animation Studios. This work was generously supported by NSF award 1844538.
